STEEL SLEEVES
Structural Concrete Penetration Sleeves
Call for pricing & availability:
(859) 300-9746
STEEL PIPE
PENETRATION SLEEVES
Steel Sleeves manufactures heavy-duty steel pipe and penetration sleeves for pre-pour installation in structural concrete. Built for plumbing, mechanical and electrical penetrations, our welded steel sleeves provide a rigid, secure opening for pipe, conduit and other MEP systems through concrete floor slabs. Standard and custom sizes are fabricated in Kentucky and shipped nationwide.
Steel pipe sleeves are used to create planned penetrations through structural concrete for plumbing, mechanical and electrical systems.
Our sleeves are fabricated for commercial construction where rigid pre-pour openings are required for piping, conduit, risers and other MEP runs. Each sleeve can be built to the diameter and height required for the project, including deeper concrete pours and custom applications.
BUILT FOR COMMERCIAL
MEP CONSTRUCTION

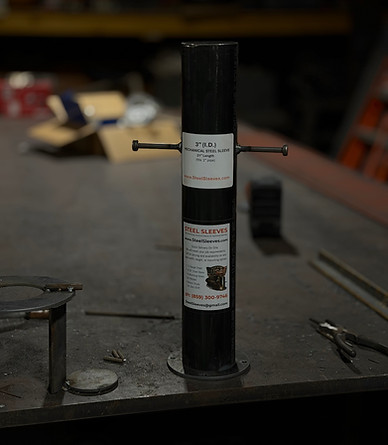

Steel Sleeve Specifications
Sleeves are fabricated to project requirements. Send us the pipe or penetration diameter, required sleeve height and quantity for pricing.
-
11-gauge steel sleeve
-
All-welded construction
-
Welded Nelson studs for concrete anchorage
-
3/16" steel mounting plate
-
8" diameter base footprint
-
Four pre-drilled mounting holes
-
Standard diameters: 3", 4" and 6"
-
Custom diameters and heights available
-
Designed for pre-pour installation​
